How to Build This Tiny Cabin That Will Pay for Itself

This article was written by Creative Idea DIY, the designer of the Kasita Cabin, which has become a highly sought-after accommodation at Kasita Glamping Cabins Lake Texoma. These charming tiny cabins and houses are among the most popular and profitable structures on Hipcamp, consistently attracting high booking rates.

Discover How Hipcamp Hosts Earn $75,000 Annually by Welcoming Campers

My fascination with small-space living began long before tiny homes and glamping became mainstream. I spent nearly a year tent-camping in Joshua Tree, lived in a 24-foot camper, and eventually settled in New York City. In 2010, I became involved in my family’s vacation rental business at Lake Texoma, Texas, where my passion for minimalist living naturally influenced our approach to hospitality.

Over the years, we acquired several unique properties around the lake, including a 35-cabin marina, a resort, and even an Army Corps of Engineers campground. However, the existing structures were outdated and did not appeal to the demographic we wanted to attract. Our goal was to modernize these accommodations while maintaining a warm and inviting atmosphere.

Traditional options such as shipping containers proved too expensive for our needs, as we had numerous mobile cabins to replace and RV sites to fill. Yurts and canvas tents did not align with the sleek aesthetic we envisioned. Additionally, the properties were located in a floodplain, meaning all structures needed to be portable and without plumbing to comply with regulations.

Introducing the Kasita Cabin

Faced with these challenges, we asked ourselves: What is cost-effective, portable, easy to build, and visually appealing to guests? The answer was the Kasita.

Once we finalized the design, our construction team built the first two cabins in just 20 days each. They were an immediate success, prompting us to build four more. Today, we have six Kasitas available on Hipcamp, with plans to construct an additional four units in the near future.

Start Earning by Hosting Campers on Your Land

If you’re interested in generating additional income by hosting campers and glampers, consider starting a Hipcamp listing today.

How to Build Your Own Kasita Cabin

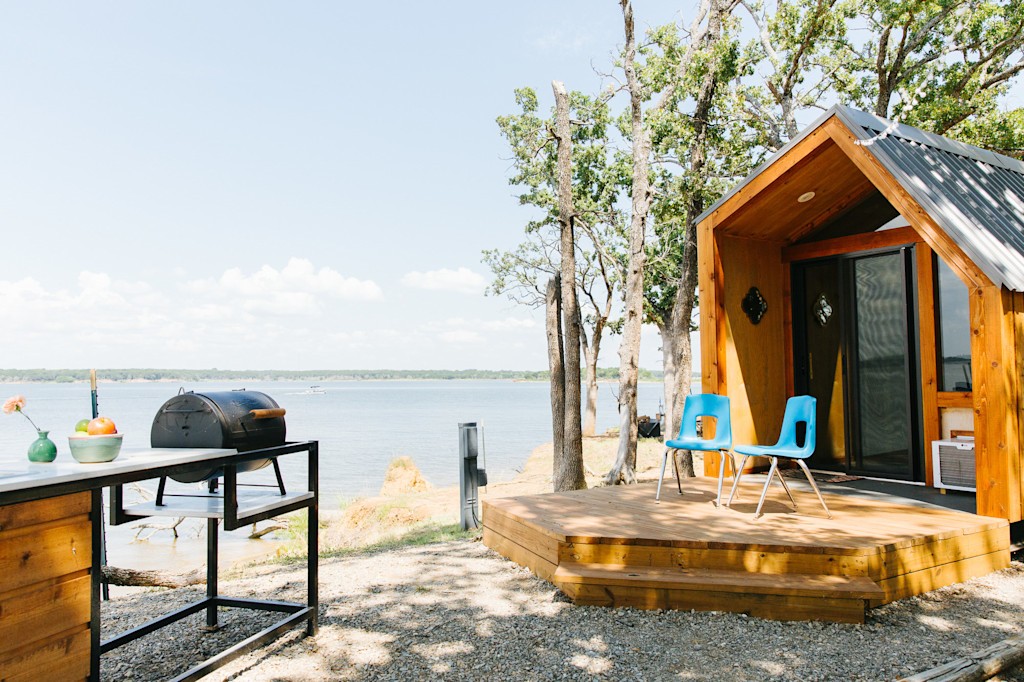

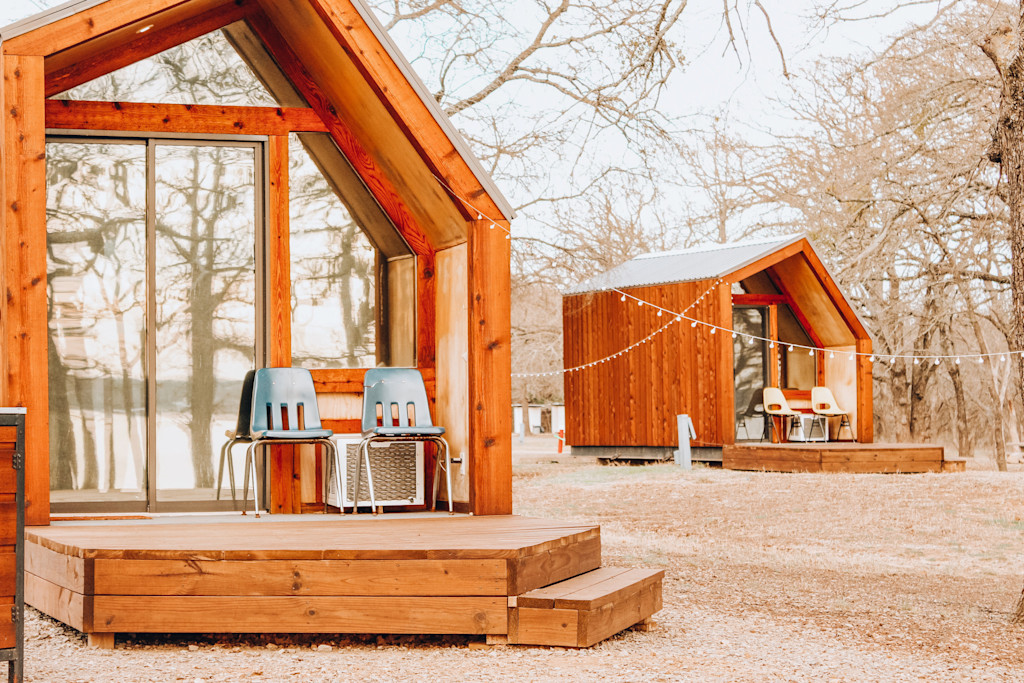

Below, I’ve outlined the design benefits, construction techniques, and an 11-step DIY guide to help you build your own Kasita Cabin. But first, here are a few images of the finished product:

Benefits of the Kasita’s tiny modern house design

• Cost-Effective: A structure that can be built cost-effectively with locally sourced materials. Also something that could be replicated easily as demand grows.
• Portable: Small enough that they can be moved with our tilt-trailer yet strong enough to withstand the stresses of moving. The dimensions were established based on what can legally be hauled down the road without a permit.
• Perfect for RV sites: Due to small size and power draw being less than 30 amps.
• Weather-proof: Strong framing that allows for thicker insulation. We used wool, which is more weather resistant than the pink stuff.
• Environmentally-friendly: Both in construction and through it’s minimal impact on surrounding nature.
• Functional: A usable space that is better than a tent but without too many creature comforts that cause you to forget to enjoy nature.
• Beautiful: Subjective, but a design that can stand the test of time and have a modern feel without overpowering the nature that surrounds it.

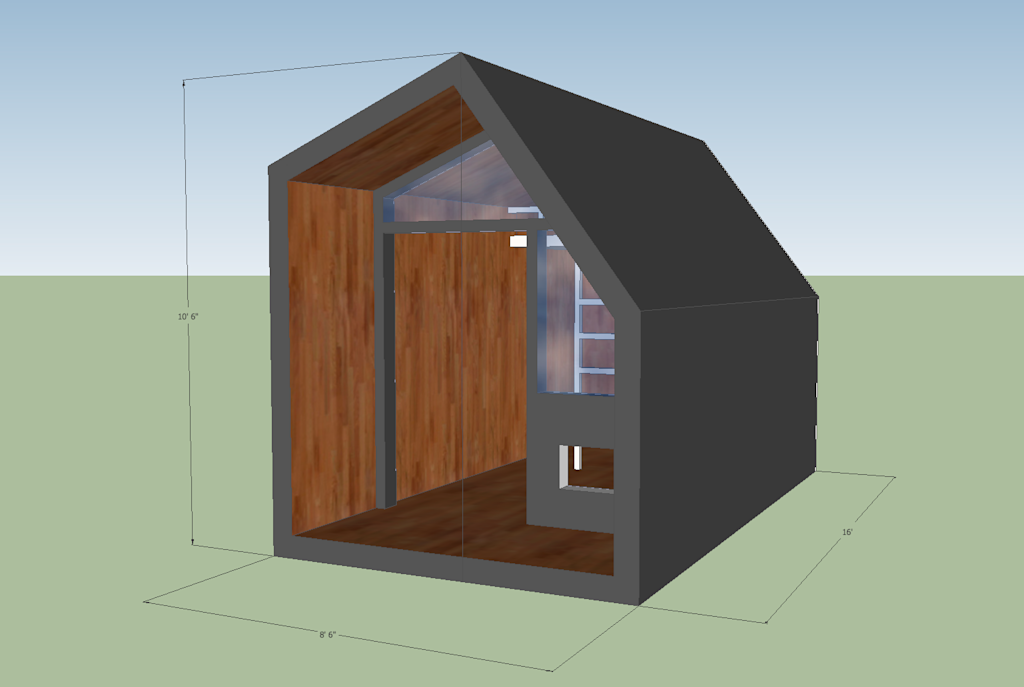

In total, the materials to build one Kasita cost around $7,000, including the skid-frame (what makes it portable.) Here’s the conceptual design and some measurements:

And, without further ado, the 11 steps for building your own tiny modern cabin:

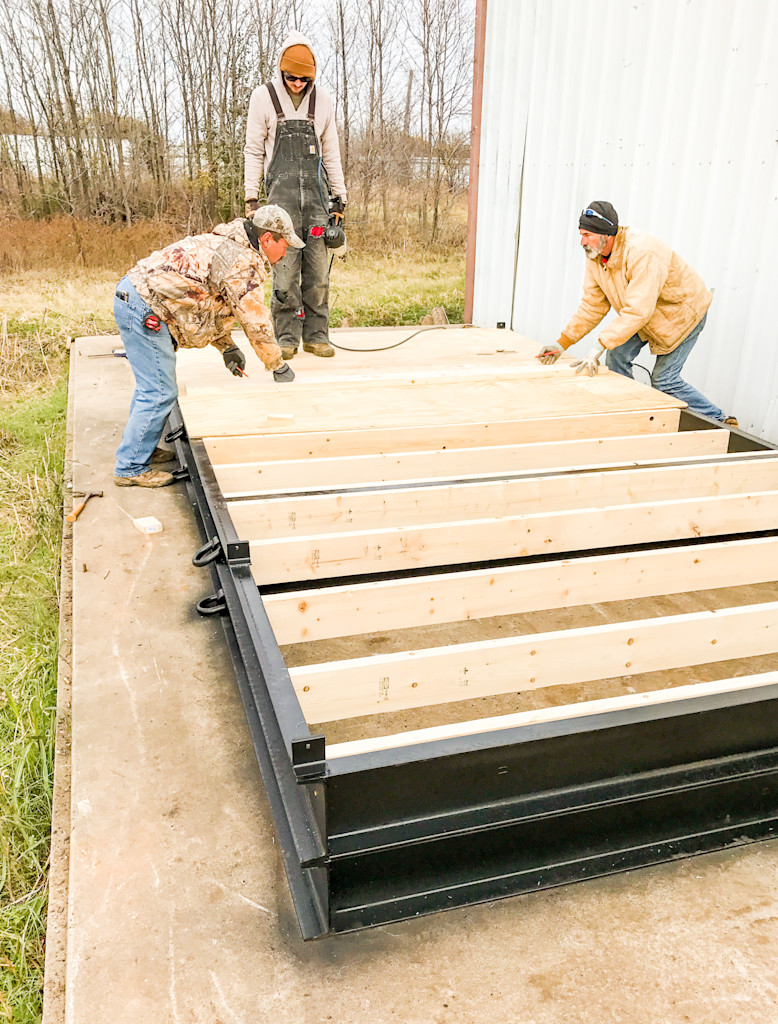

1. Skid frame

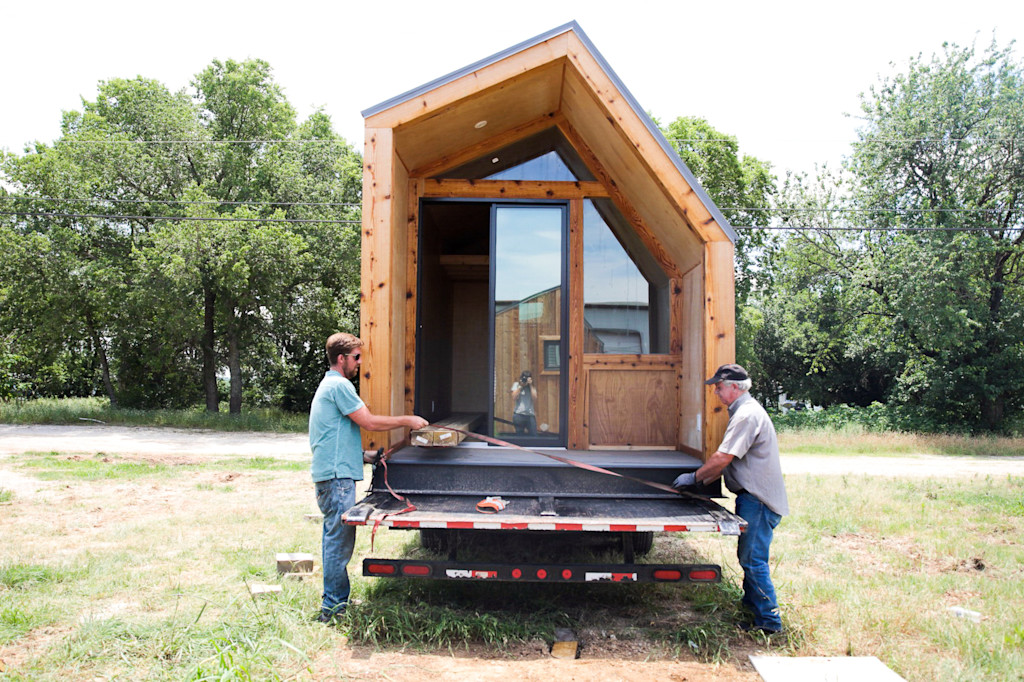

From an engineering perspective, we elected to use an 8” steel I-Beam frame that would be rigid enough to withstand flexing when we moved them. It’s heavy, but worth the added strength. We fitted the frames with 2 C-Channel steel cross supports to provide extra rigidity and welded on loops to be able to move them as needed. Cross beams were 2×6 I purchased a ‘tilt-trailer’ that I can literally back up to the Kasita, hook up a winch and load them on a trailer in about 30 minutes. The frames are 8’ x 16’ which accommodate for zero-waste construction.

2. Decking

This is simple. It’s 4 sheets of ¾” marine-grade plywood that would be painted for durability and maintenance.

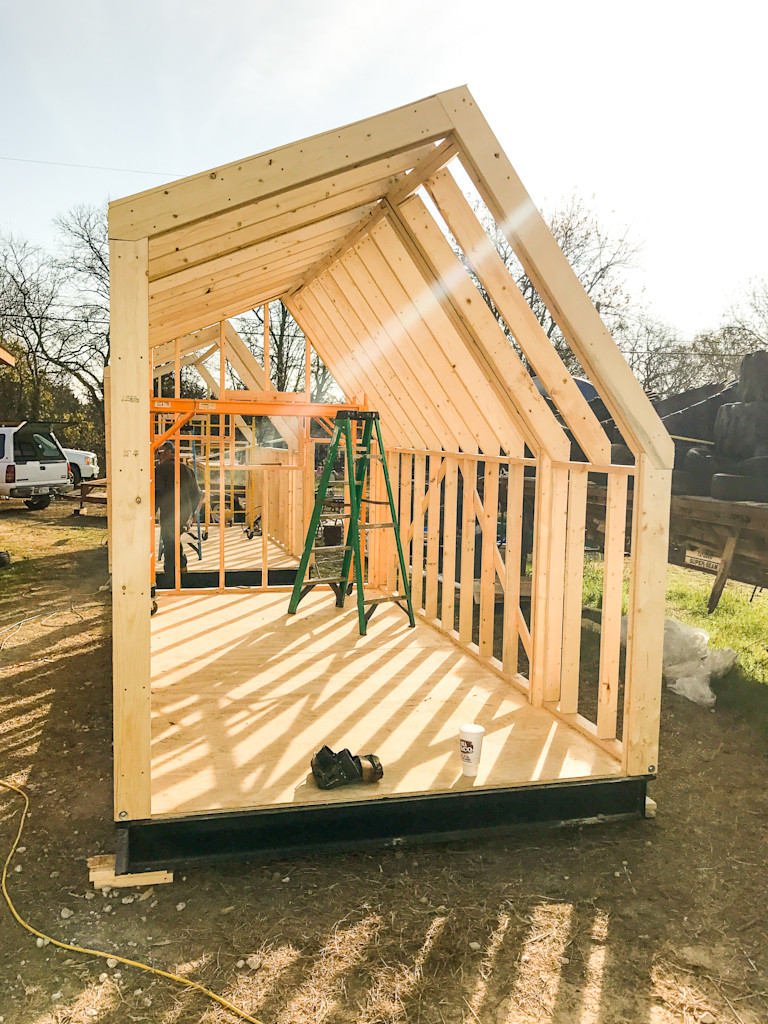

3. Framing

All walls were constructed with 2×6 pine on 16” centers to allow for structural support and thicker insulation. Even though they have HVAC units and a small space, efficiency and comfort were very important. Texas summers are warm and winters are cold—we wanted the Kasitas to be usable and comfortable year-round.

4. Walls

Walls were covered with standard sheathing before we installed the cedar siding. We used a Tyvek moisture barrier.

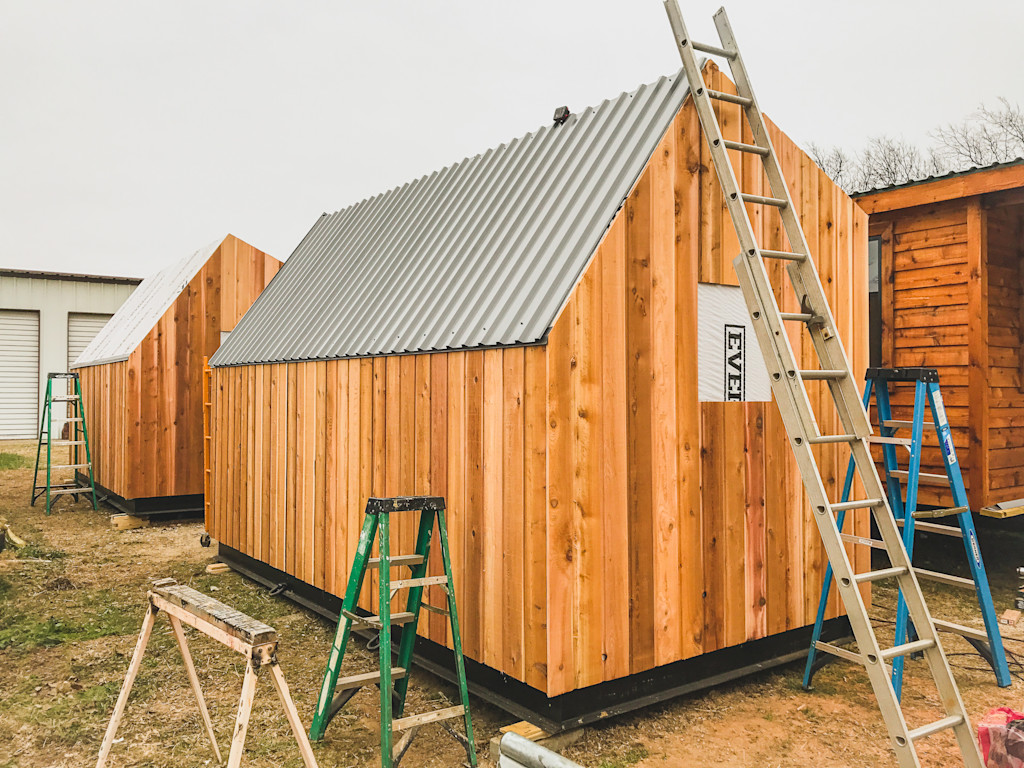

5. Roofing

A gray metal U-Panel roof was used. Metal roofs are quick to install, durable, and have a beautiful look, especially when contrasted with the bright cedar siding.

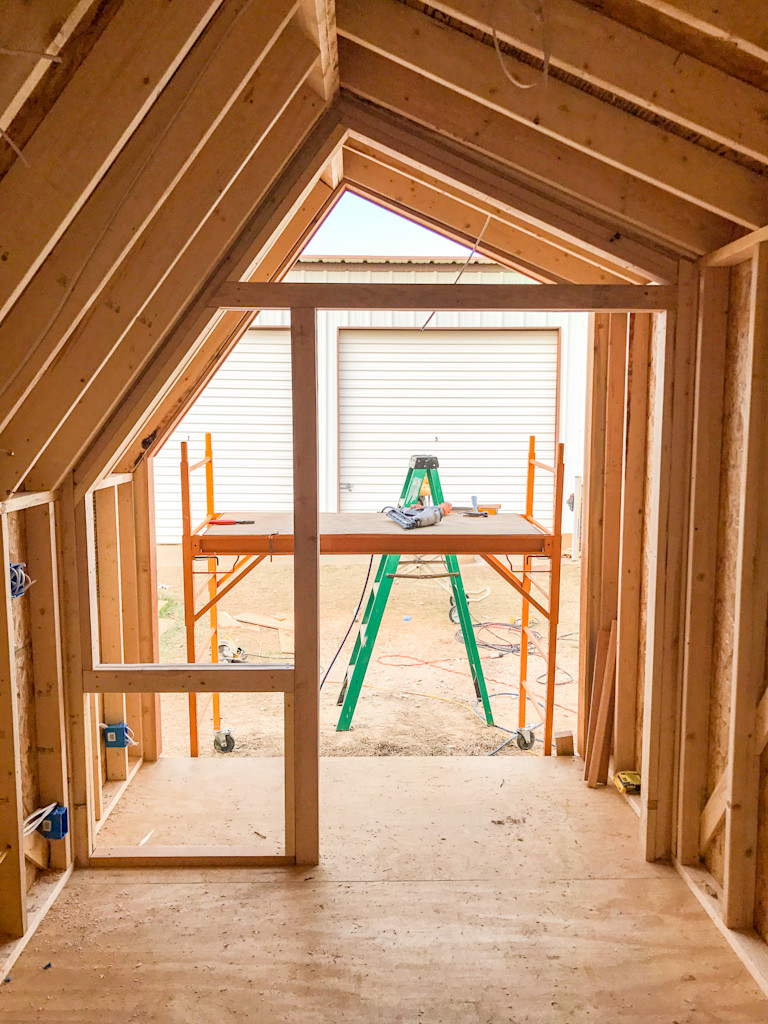

6. Interior construction

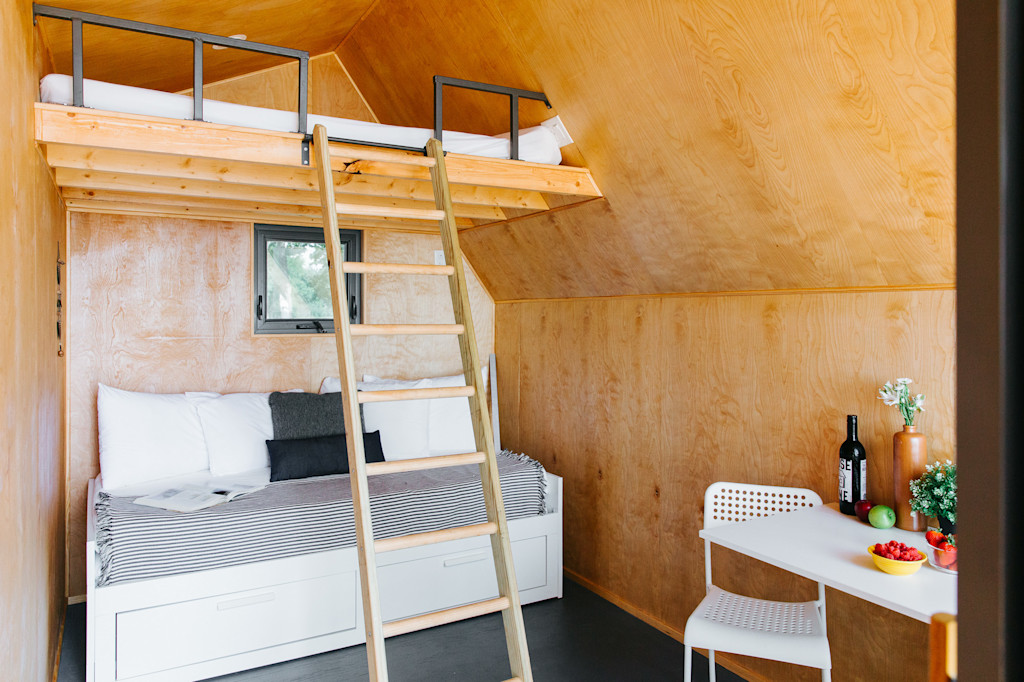

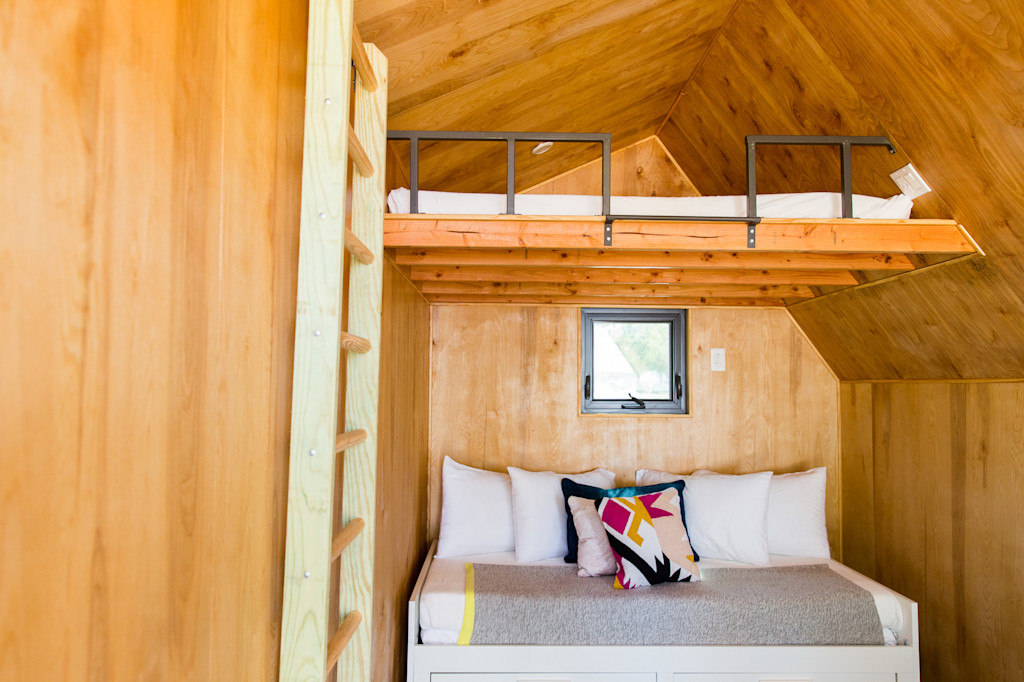

Insulation was done with Roxul brand wool insulation (aka Rockwool.) We chose this for the high R-value and sound dampening, plus it’s much more environmentally-friendly and weather-resistant than the pink stuff. The interior is ¼” birch plywood stained in a natural color to bring out the wood’s natural beauty. This provided a very clean line that carries your sights beyond the interior to flow into outside. The loft was built with a 2×4 lower frame and covered with plywood, designed to fit a full size bed.

7. Door and windows

The sliding door and rear window were custom-ordered from the orange big box store. We chose a sliding door so the door could be left open and screened (like a patio door) to enjoy the fresh breeze off the lake. We wanted the largest wall of glass possible to make the outside and inside blend together. The rear window is a crank-to-open window to help the fresh air flow through. The two angled windows were ordered from a local glass shop. We then tinted the windows with reflective tint for added privacy and to reflect solar heating away from the interior.

8. Electrical

Although the electrical is relatively simple, there were a few key components that we wanted to incorporate. First off, all the lighting needed to be warm led light (3300 Kelvin) and dimmable. The porch light needed to be switched separately from the interior and we wanted soffit lighting under the bunks. Each sleeping area has a standard wall plug with USB power right next to the bed and a GFCI outlet installed outside. We installed small ‘through-the-wall’ AC Units with heat for year-round comfort. All in all, power draw is less than 30 amps (AC being most of that) so they can be used in most RV sites.

9. Front deck

The front deck was added on after the Kasitas were placed in their location. The design was chosen to emulate the Golden Hour shadow that would be cast onto the Kasita, making for a very natural feeling dimension. They are not moveable with the structure, but can be unbolted and moved separately without a ton of work.

10. Outdoor kitchen and fire pit

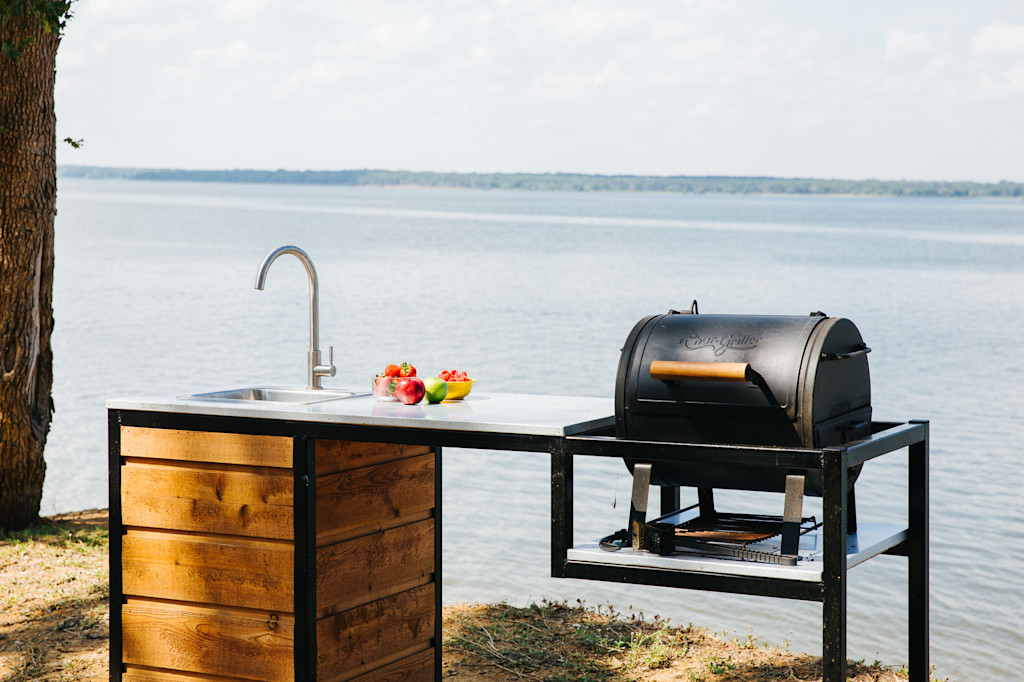

We custom-build both. For the kitchen, we felt that a sink, counter-space, and a charcoal grill would add to the glamping experience. The sink hooks up to a normal water faucet and drains into a 5 gallon bucket. We empty the gray water regularly for our guests. We built the fire pit out of heavy gauge steel. I love how the angles of the fire pit compliment the design of the Kasita.

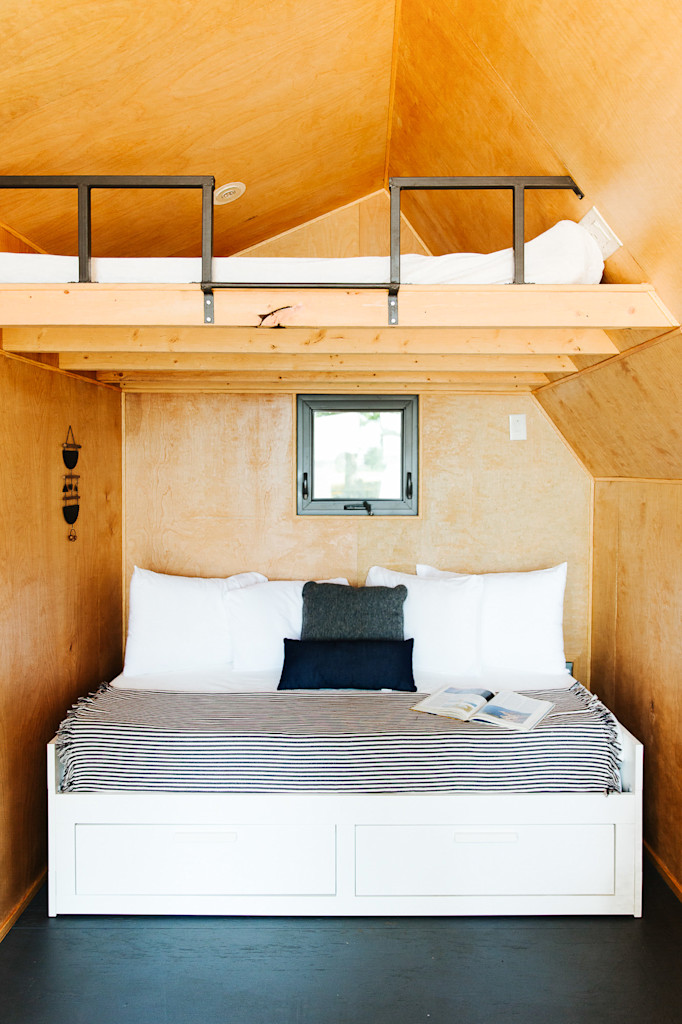

11. Decor

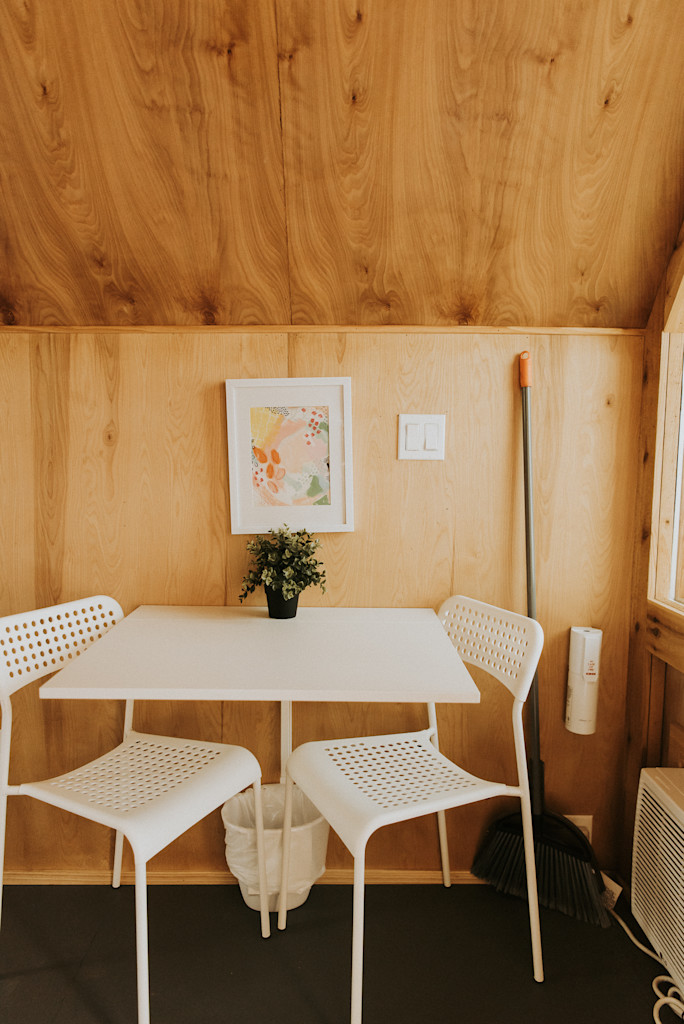

The interior dimensions are approximately 7’x11’ (about 77 sq. ft.) With space inside being at a premium, we opted for IKEA’s functionally-designed furniture. The main bed is a daybed that pulls out into a comfy king bed, and the loft is a full bed. The ladder for the loft detaches and can be hung out of the way on the wall. There’s a small interior table that folds down too. We wanted guests to spend most of their time outside, but have a comfortable interior space for colder days.

Our favorite part about the Kasita? Laying in bed at night, hearing the lake, and seeing the stars reflect over the water. It’s magical, and we’re so happy we get to share this experience with Hipcampers.
